_JW1 series one phase-Product - Taizhou Jiawo Electromechanical Co.,Ltd

Type		Output	Speed	Efficiency	Power faclor	Rated current			Ts/Tn	Tmax/Tn	Is/In	ALU	C/l	Noisy
Type		(kw)	(rpm)	(%)	(Cosφ）	380V	400V	415V	Ts/Tn	Tmax/Tn	Is/In	(kg)	(kg)	dB(A)
JW1	56M1-2	0.09	2750	50	0.7	0.39	0.37	0.4	2.1	2.2	5.2	3.6		58
JW1	56M2-2	0.12	2750	53.6	0.72	0.47	0.45	0.4	2.1	2.2	5.2	3.9		58
JW1	63M1-2	0.18	2730	58.3	0.8	0.59	0.56	0.5	2.2	2.2	5.5	4.8		61
JW1	63M2-2	0.25	2800	61.9	0.81	0.76	0.72	0.7	2.2	2.2	5.5	5.1		61
JW1	71M1-2	0.37	2756	65.8	0.81	1.05	1	1	2.2	2.2	6.1	6		64
JW1	71M2-2	0.55	2792	69.4	0.82	1.47	1.4	1.3	2.2	2.2	6.1	6.5		64
JW1	80M1-2	0.75	2830	72.1	0.83	1.9	1.8	1.7	2.2	2.3	6.1	8.7	15	67
JW1	80M2-2	1.1	2830	75	0.84	2.7	2.5	2.4	2.2	2.3	7	9.5	16.5	67
JW1	90S-2	1.5	2840	77.2	0.84	3.5	3.3	3.2	2.2	2.3	7	11.8	20	72
JW1	90L-2	2.2	2840	79.7	0.85	4.9	4.7	4.5	2.2	2.3	7	13.5	24	72
JW1	100L-2	3	2860	81.5	0.87	6.4	6.1	5.9	2.2	2.3	7.5	21	31	76
JW1	112M-2	4	2880	83.1	0.88	8.3	7.9	7.6	2.2	2.3	7.5	28	38	77
JW1	132S1-2	5.5	2900	84.7	0.88	11.2	10.7	10.3	2.2	2.3	7.5	39	58	80
JW1	132S2-2	7.5	2900	86	0.88	15.1	14.3	13.8	2.2	2.3	7.5	44.5	62	80
JW1	160M1-2	11	2930	87.6	0.89	21.4	20.4	19.6	2.2	2.3	7.5	69.5	103	86
JW1	160M2-2	15	2930	88.7	0.89	28.9	27.4	26.4	2.2	2.3	7.5	78	112	86
JW1	160L-2	18.5	2930	89.3	0.9	35	33.2	32	2.2	2.3	7.5	88.5	135	86
JW1	180M-2	22	2940	89.9	0.9	41.3	39.2	37.8	2	2.3	7.5		165	89
JW1	200L1-2	30	2950	90.7	0.9	55.8	53	51.1	2	2.3	7.5		215	92
JW1	200L2-2	37	2950	91.2	0.9	68.5	65.1	62.7	2	2.3	7.5		232	92
JW1	225M-2	45	2970	91.7	0.9	82.8	78.7	75.9	2	2.3	7.5		285	92
JW1	250M-2	55	2970	92.1	0.9	100.8	95.8	92.3	2	2.3	7.5		375	93
JW1	280S-2	75	2970	92.7	0.9	136.6	129.8	125.1	2	2.3	7.5		500	94
JW1	280M-2	90	2970	93	0.91	161.6	153.5	148	2	2.3	7.5		550	94
JW1	315S-2	110	2980	93.3	0.91	196.9	187	180.2	1.8	2.2	7.1		860	96
JW1	315M-2	132	2980	93.5	0.91	235.7	223.9	215.8	1.8	2.2	7.1		960	96
JW1	315L1-2	160	2980	93.8	0.92	281.7	267.6	257.9	1.8	2.2	7.1		1020	99
JW1	315L2-2	200	2980	94	0.92	351.4	333.8	321.7	1.8	2.2	7.1		1080	99
JW1	355M-2	250	2980	94.3	0.92	437.8	415.9	400.9	1.6	2.2	7.1		1700	103
JW1	355L-2	315	2980	94.5	0.92	550.5	523	504.1	1.6	2.2	7.1		1850	103
JW1	400M1-2	355	2985	95.7	0.9	626.2	594.9	573.4	1.6	2	7.5		2750	106
JW1	400M2-2	400	2985	96	0.9	703.4	668.2	644.1	1.7	2	7.5		2880	106
JW1	400M3-2	450	2985	96.1	0.9	790.5	751	723.9	1.5	2	7.5		3000	109
JW1	400L-2	500	2985	96.2	0.91	867.8	824.4	794.6	1.5	2	7.5		3160	109

Jiawo Electromechanical series

A manufacturer and exporter specializing in the production of high pressure cleaning machines and motors.

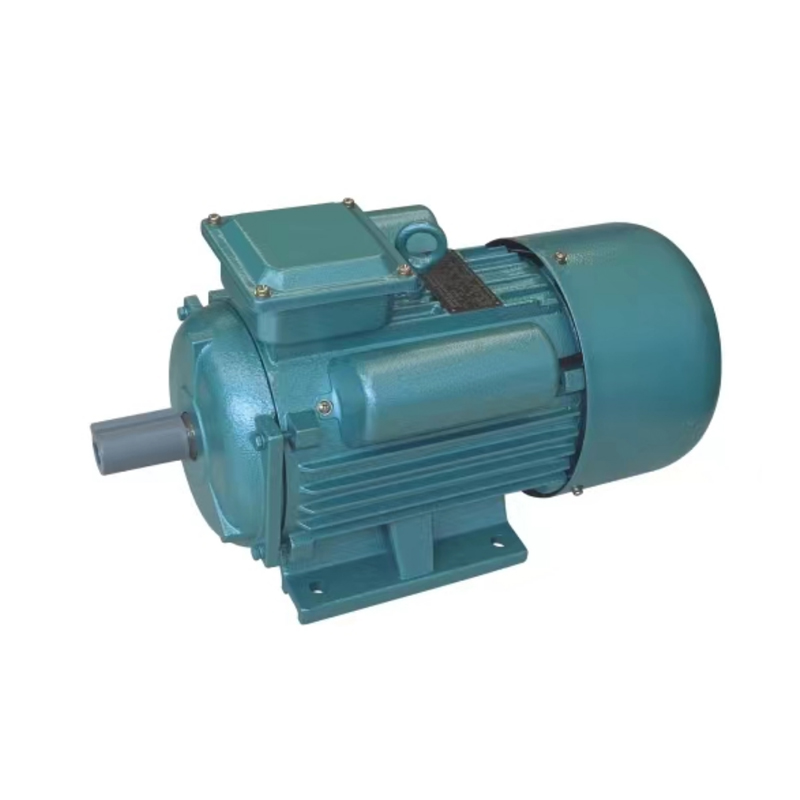

JW1 series one phase asynchronous motor

Product description
